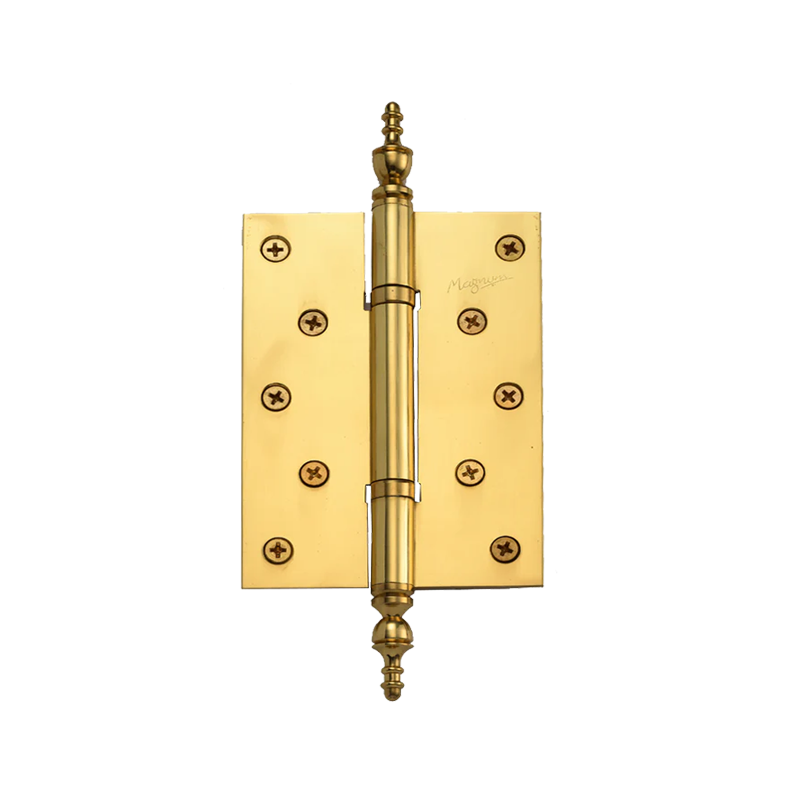

Brass Full Mortise Template Hinges
Brass Full Mortise Template Hinges
Brass Full Mortise Template Hinges
• Available with 2 or 4 ball bearing.
• Available in American standard sizes.
• Well-known as “template” hole pattern.
• Preferred by steel doors manufacturer due to the standard hole pattern.
• Hassle -free installation and restoration work.
Finishes Options
Rose Gold (RG)(PVD)
Matt Rose Gold
Matt Black Gold
Bright Gold
Brass (PVD)
APN
24K Gold
Black Gold
Silicone
Satin Nickel
Satin Chrome
Satin Brass
Polish Chrome (Mirror)
Polish Brass
Oil Rubbed Bronze (ORB)
Gold 24k
Ballastic
Antique Nickel
Antique Copper
Antique Brass
Size Chart
| Item Code | Size in inch Single Leaf Size: L x S x T | Size in mm |
|---|---|---|
| 1201 | 3 x 3 x 2.34mm | 76 x 76 x 2.34mm |
| 1202 | 3.1/2 x 3.1/2 x 3.12mm | 89 X 89 X 3.12mm |
| 1203 | 4 x 4 x 3.30mm | 102 X 102 X 3.30mm |
| 1204 | 4 .1/2 X 4 X 3.40mm | 114 X 102 X 3.40mm |
| 1205 | 4.1/2 x 4.1/2 x 3.40mm | 114 X 114 X 3.40mm |
| 1206 | 4.1/2 x 4.1/2 x 4.57mm | 114 X 114 X 4.57mm |
| 1207 | 5 x 5 x 3.71mm | 127 X 127 X 3.71mm |
| 1208 | 5 x 5 x 4.83mm | 127 X 127 X 4.83mm |
