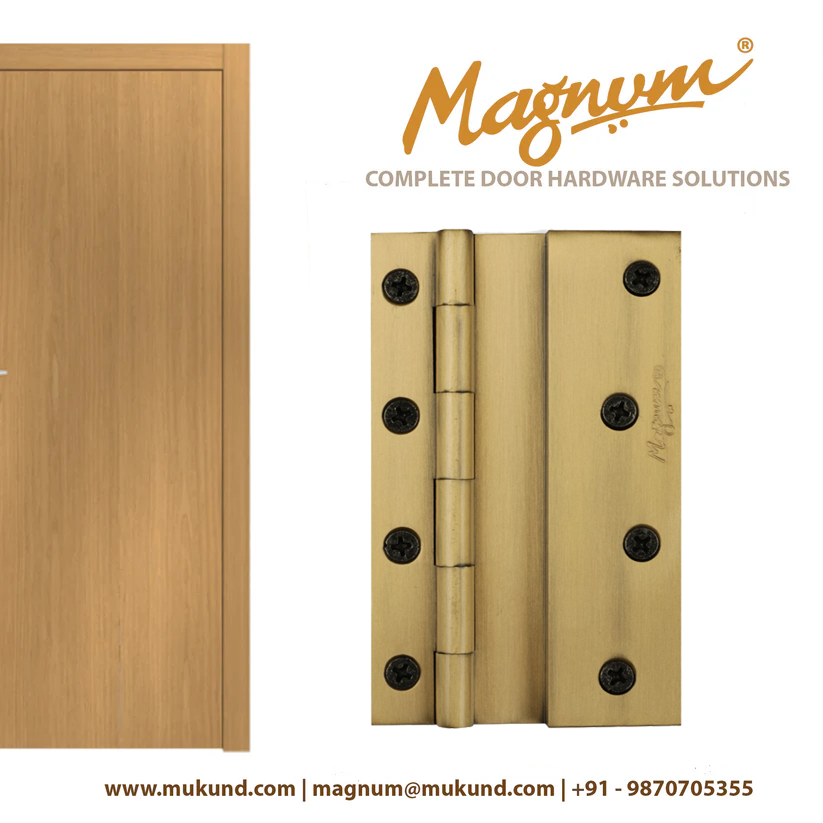

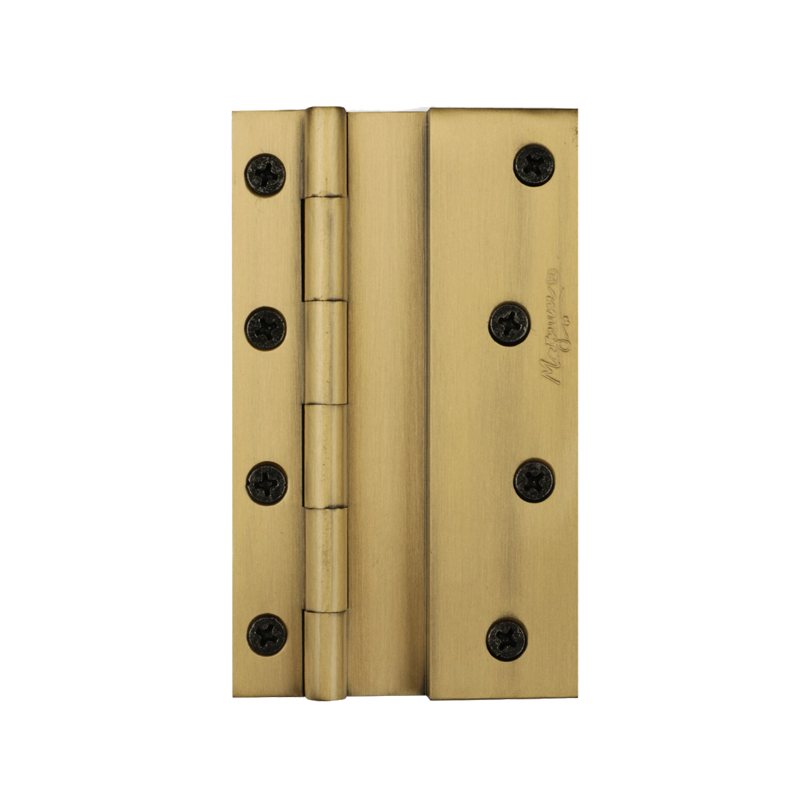

Brass L – Hinges
- These are special design off-set type fixed pin butt hinges
- Comes in various height of offset
- These hinges are mainly used for the kitchen cabinets
- The different sizes of two havles allow it to sit on narrow frame and wide shutters.
- It opens at 180 degree angle,allow the door to open fully for utilization of 100% cabinet space.
Finishes Options
Rose Gold (RG)(PVD)
Matt Rose Gold
Matt Black Gold
Brass (PVD)
Black Gold
Bright Gold
APN
24K Gold
Silicone
Satin Nickel
Satin Chrome
Satin Brass
Polish Chrome (Mirror)
Polish Brass
Oil Rubbed Bronze (ORB)
Gold 24k
Ballastic
Antique Nickel
Antique Copper
Antique Brass
Size Chart
| Item Code | Size 1/4in ( 6mm )OFFSET ANGLE |
|---|---|
| 3801 | 3in x 3/8in x 1.1/4in x 2mm |
| 3803 | 3in x 1/2in x 1.1/2in x 2mm |
| 3804 | 3in x 3/4in x 1.3/4in x 2mm |
| 3805 | 4in x 3/8in x 1.1/2in x 2mm |
| 3806 | 4in x 1/2in x 1.1/2in x 2mm |
| 3807 | 4in x 3/4in x 1.3/4in x 2mm |
| 3810 | 4in x 3/8in x 1.1/4in x 2mm |
| 3808 | 3in x 1in x 2in x 2mm |
| 3809 | 4in x 1in x 2in x 2mm |
| Item Code | Size 1/2in (12.7mm)OFFSET ANGLE |
| 3820 | 3in x 3/8in x 1.1/4in x 2mm |
| 3821 | 3in x 1/2in x 1.1/2in x 2mm |
| 3822 | 4in x 1/2in x 1.1/2in x 2mm |
| 3823 | 3in x 3/4in x 1.3/4in x 2mm |
| 3824 | 4in x 3/4in x 1.3/4in x 2mm |
| 3825 | 3in x 1in x 2in x 2mm |
| 3826 | 4in x 1in x 2in x 2mm |
| Item Code | 3/4in (19mm) OFFSET ANGLE |
| 3841 | 3in x 3/8in x 1.1/4in x 2mm |
| 3842 | 3in x 1/2in x 1.1/2in x 2mm |
| 3843 | 4in x 1/2in x 1.1/2in x 2mm |
| 3844 | 3in x 3/4in x 1.3/4in x 2mm |
| 3845 | 4in x 3/4in x 1.3/4in x 2mm |
| 3846 | 3in x 1in x 2in x 2mm |
| 3847 | 4in x 1in x 2in x 2mm |
| Item Code | 1in (25mm) OFFSET ANGLE |
| 3861 | 3in x 1/2in x 1.1/2in x 2mm |
| 3862 | 4in x 1/2in x 1.1/2in x 2mm |
| 3863 | 3in x 3/4in x 1.3/4in x 2mm |
| 3864 | 4in x 3/4in x 1.3/4in x 2mm |
| 3865 | 3in x 1in x 2in x 2mm |
| 3866 | 4in x 1in x 2in x 2mm |
