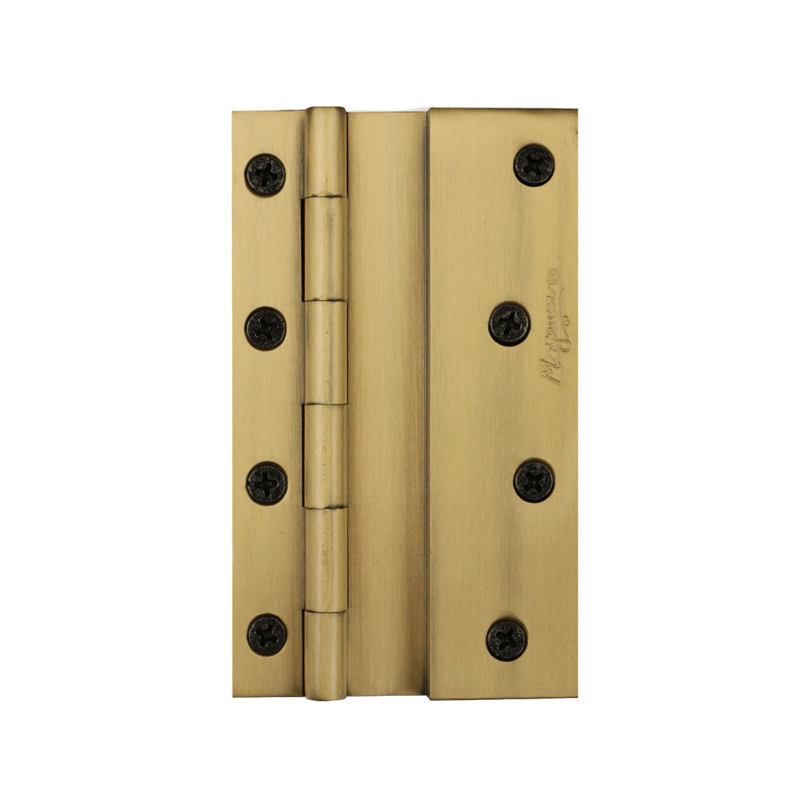

Brass Light Butt Cut Hinges
Brass Light Butt Cut Hinges
Brass Light Butt Cut Hinges
- This hinges have different width of two halves to allow it to fit on narrow frame and wide shutter.
- The two end caps eliminate the possibility of central pin falling-off
- Can be used in kitchen are like kitchen cabinets and wardrobes.
Angle of Opening
Light butt cut hinges typically allow for a 180-degree opening angle, depending on the size and style.

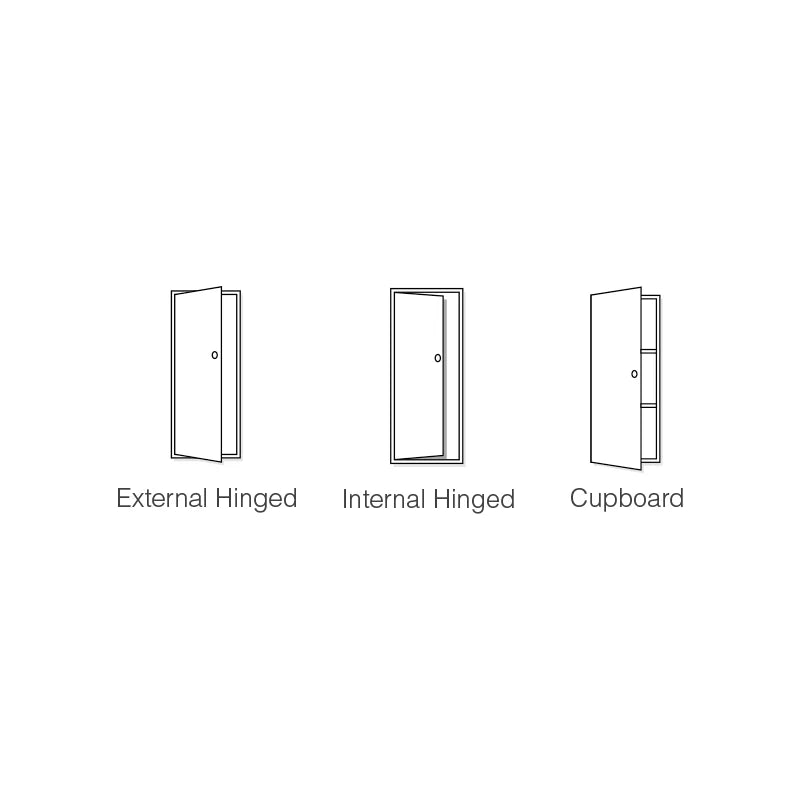

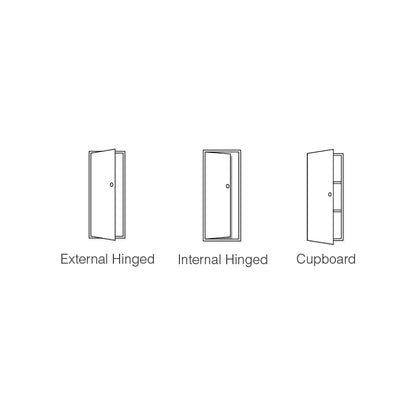

Application
rimarily used for interior doors, lightweight cabinet doors, small furniture pieces, or shutters
Finishes Options
Rose Gold (RG)(PVD)
Matt Black Gold
Bright Gold
Matt Rose Gold
Brass (PVD)
Black Gold
APN
24K Gold
Silicone
Satin Nickel
Satin Chrome
Satin Brass
Polish Chrome (Mirror)
Polish Brass
Oil Rubbed Bronze (ORB)
Gold 24k
Ballastic
Antique Nickel
Antique Copper
Antique Brass
Size Chart
| Item Code | Size |
|---|---|
| 3701 | 3in x 3/8in x 5/8inx 2mm |
| 3702 | 3in x 3/8in x 3/4in x 2mm |
| 3703 | 3in x 3/8in x 1in x 2mm |
| 3704 | 3in x 1/2in x 3/4in x 2mm |
| 3705 | 3in x 1/2in x 1in x 2mm |
| 3706 | 3in x 1/2in x 1.1/2in x 2mm |
| 3707 | 3in x 3/4in x 3/4in x 2mm |
| 3708 | 3in x 3/4in x 1in x 2mm |
| 3709 | 3in x 3/4in x 1.1/2in x 2mm |
| 3710 | 3in x 7/8in x 7/8in x 2mm |
| 3723 | 4in x 7/8in x 7/8in x 2mm |
| 3711 | 4in x 3/8in x 3/4in x 2mm |
| 3712 | 4in x 3/8in x 1in x 2mm |
| 3713 | 4in x 1/2in x 3/4in x 2mm |
| 3714 | 4in x 1/2in x 1in x 2mm |
| 3715 | 4in x 1/2in x 1.1/2in x 2mm |
| 3716 | 4in x 3/4in x 3/4in X 2mm |
| 3717 | 4in x 3/4in x 1in x 2mm |
| 3718 | 4in x 3/4in x 1.1/2in x 2mm |
| 3721 | 3in x 1in x 1in x 2mm |
| 3722 | 4in x 1in x 1inx 2mm |
